Specialty alternators and power electronics.

We supply compact and rugged alternators, converters, electronic starters, battery chargers and ignitions for engine-driven applications. With internal EMC testing equipment, we support all the way from development through certification and production at scale.

Power generation systems

We design the generators and converters around your engine

Some applications we worked on:

Features

Products

In IDM, we design our alternators and power electronics to easily integrate with your engine. Upon request, we select the engine ourselves, providing a full system.

Some features of the IDM products include:

AC/DC converters – Power Supply Units and Battery Chargers
DC/DC converters
DC/AC inverters for motor control and electronic engine starting
Bidirectional architecture
Configurable through the required communication protocol (custom, CANopen, J1939, RS-485, RS-282)
Designed to achieve strictest performance and EMC standards
Parallelable
Telemetry: data such as current, voltage and temperature can be recorded, exported, or accessed live.

Power electronics

Power converters designed with our alternators to qualify for extreme temperatures (i.e. −40 °C to +70 °C), shock, vibrations and humidity.

Power Supply Units (PSUs)

Rugged AC to DC converters

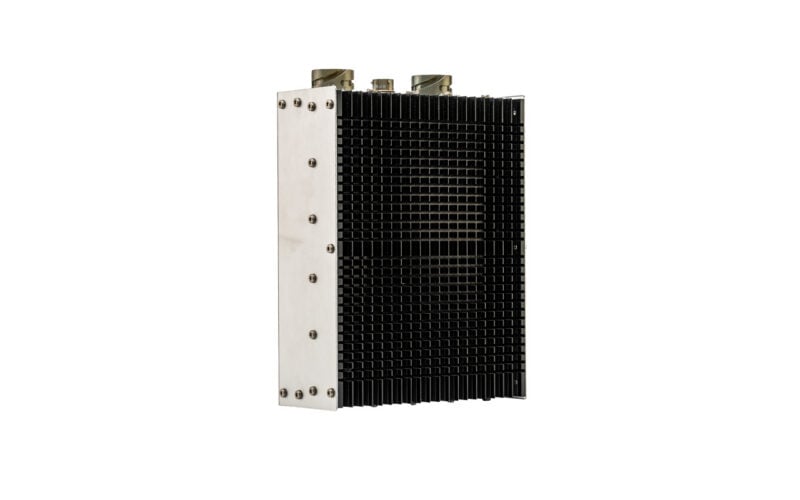

PSU-124

90A – 28VDC PSU

Input (V) 30 - 55VAC

Output (V) 28VDC

Power 2500W

PSU-163

100A – 28/56 VDC PSU

Input (V) 28 - 110VAC

Output (V) 28 to 56VDC

Power 3 - 6kW

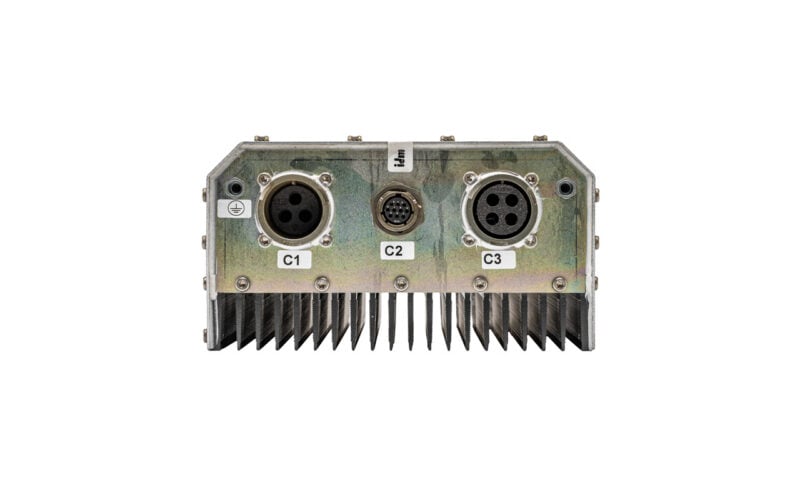

C-159-104

125A – 28VDC PSU

Input (V) 30 - 55VAC

Output (V) 28VDC

Power 3500W

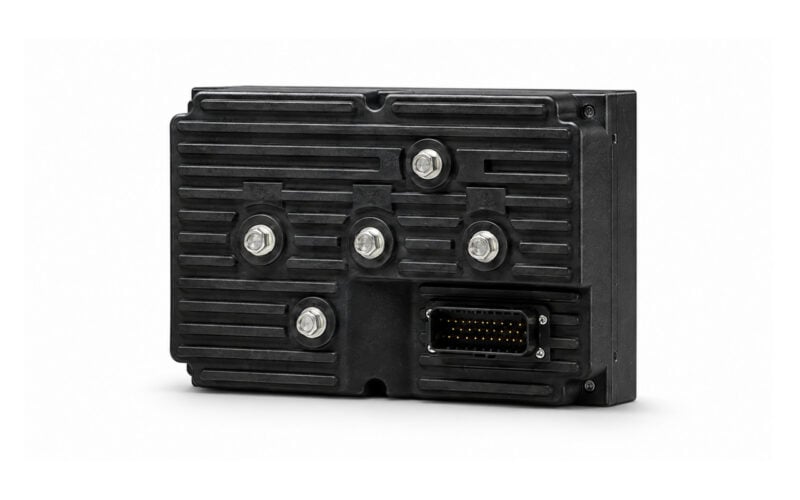

C-200

400A – 28/60VDC PSU

Input (V) 3-Phase PMG

Output (V) 28 - 60VDC

Power up to 15kW

C-162

600A – 28VDC PSU

Input (V) 3-Phase PMG

Output (V) 24-28VDC

Power up to 25kW

C-091

2kW PSU – 230VAC to 28VDC

Input (V) 230VAC

Output (V) 28VDC

Power 2kW

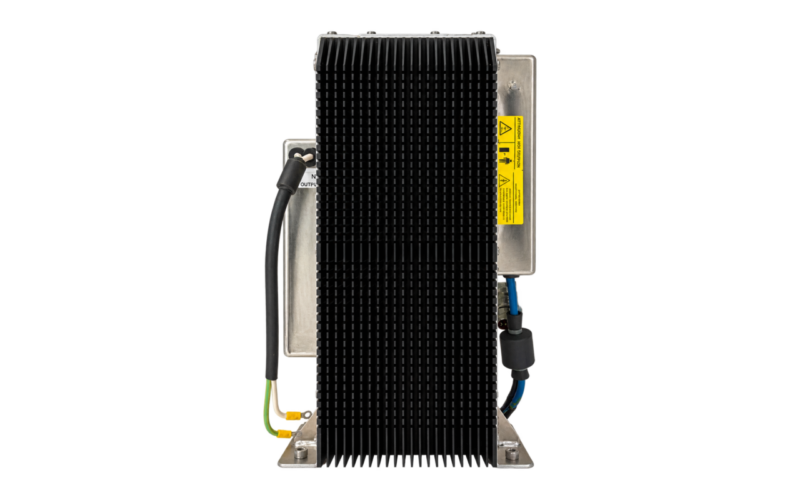

C-070

2.5kVA PSU -120/230VAC + 28VDC outputs

Output (V) 120/230VAC

Output (V) 28VDC

Power 2500VA

Motor control units (MCUs)

DC to AC inverters for electronic engine starting and control.

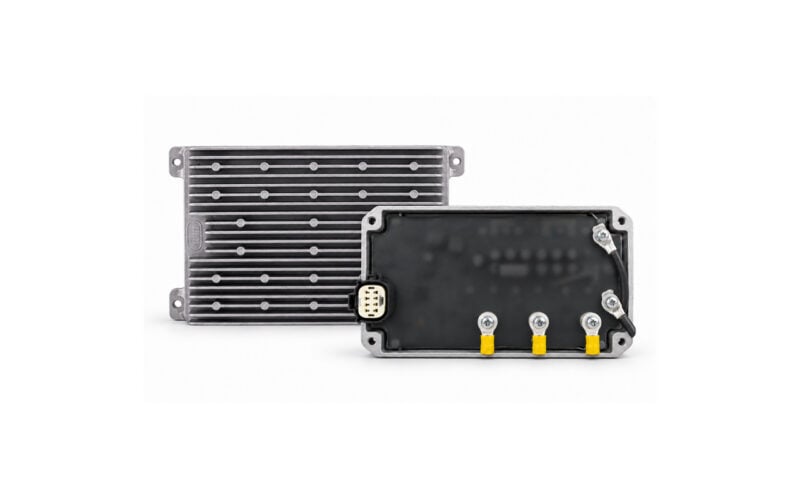

MCU-125

125A MCU

Current (A) 125A

Input (V) 14/28VDC

Efficiency 96%

ST-206

335A Bidirectional PSU and starter unit (20kW)

Current (A) 335A

Input (V) 24-60VDC configurable

Efficiency 94%

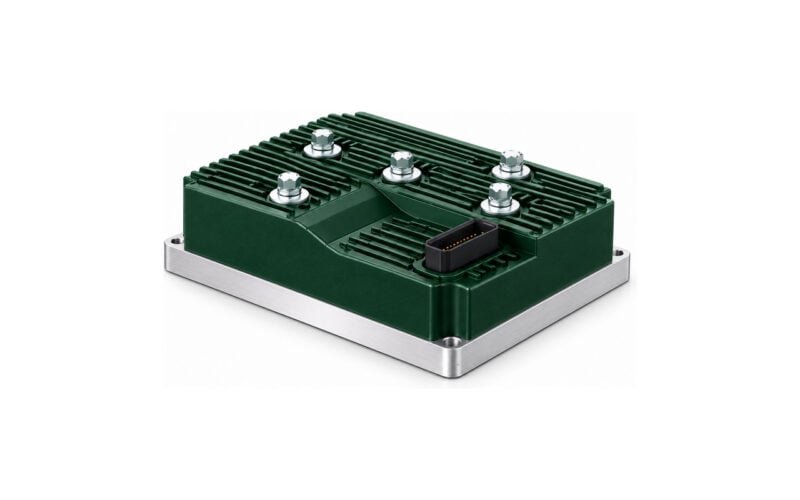

ST-162

600A starter bidirectional

Current (A) 600A Imax START

Input (V) 24 - 60VDC configurable

Efficiency 93%

AC/AC converters

Electronic converters from 3 phase to regulated AC output

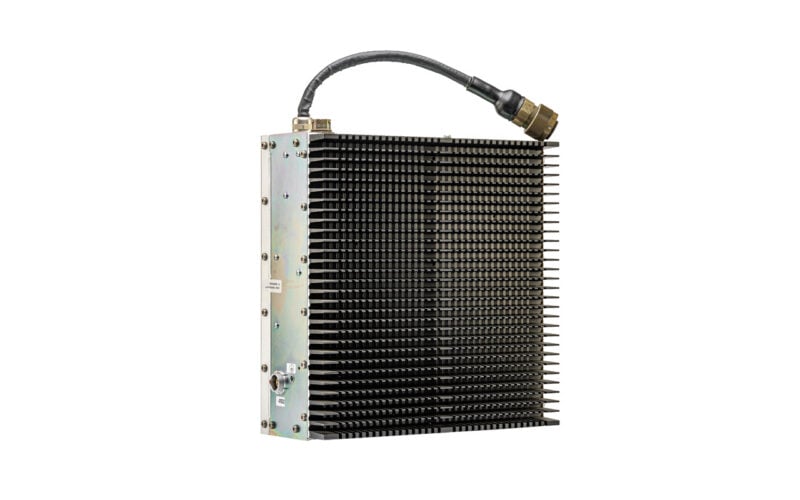

C-110

2kW AC/AC + DC converter – 230VAC + 24-28VDC

Power 2kW (@3000 rpm)

Output (V) 230VAC + 24+28VDC

Frequency (Hz) 50Hz

2kW AC/AC + DC converter - 230VAC + 24-28VDC

C-182

Configurable AC/AC converter – 120/230 VAC

Power up to 4kW

Output (V) 120/230VAC configurable

Frequency (Hz) 50/60Hz

C-174

15kW AC/AC converter – 230VAC

Power 15kW

Output (V) 220VAC

Frequency (Hz) 50Hz

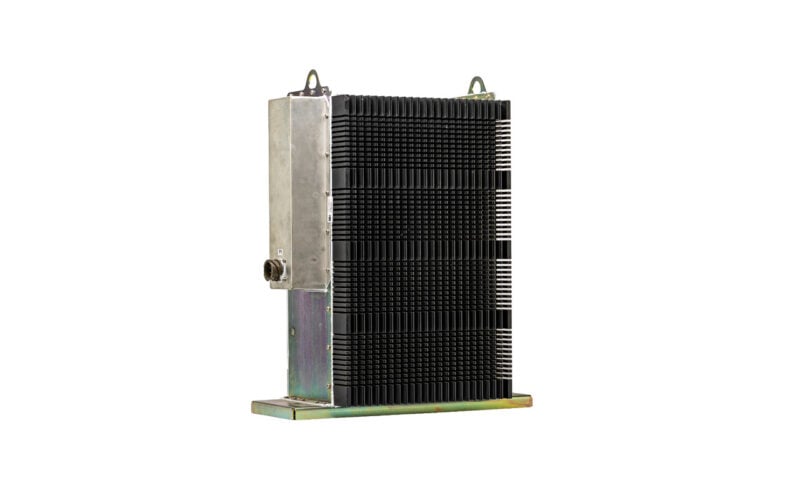

C-138

6.5kW AC/AC converter – 230VAC

Input (V) Variable

Output (V) 230VAC

Power 6.5kW

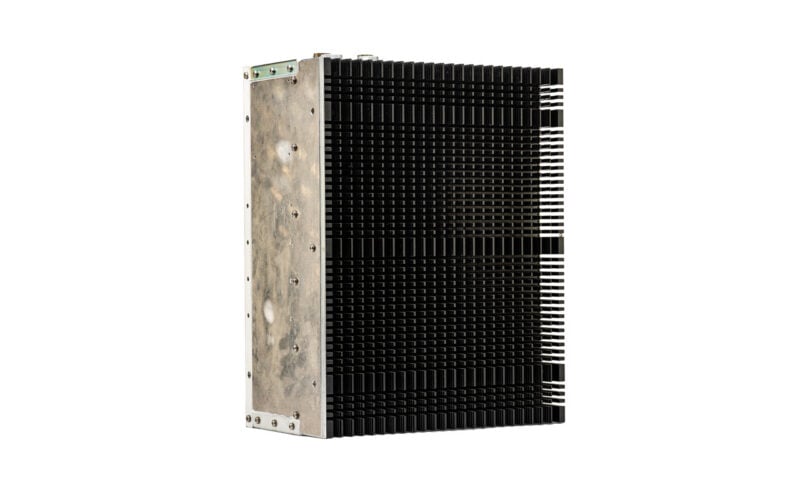

C-119

5kW AC/AC + DC Converter – 400VAC + 28VDC

Input (V) 920VAC

Output (V) 400VAC

Power 5000W (@3000 rpm)

5kW AC/AC + DC Converter - 400VAC + 28VDC

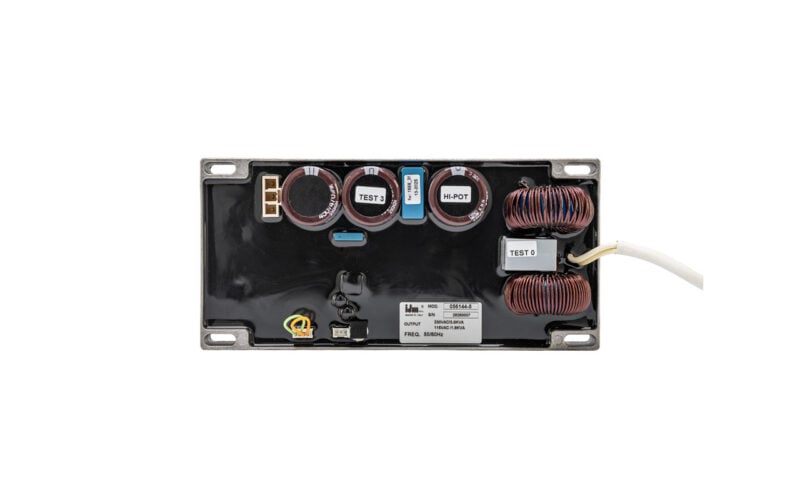

C-192

Converter to 230/115VAC

Output (V) 230/115 VAC configurable

Frequency (Hz) 50/60Hz configurable

Power 3.0kVA 230VAC / 1.5kVA 115VAC

AC/AC Converter to 115/230VAC - 3kVA/1.8kVA

DC/DC converters

DC/DC rectifiers

C-211

48VDC to 400VDC converter

Input (V) 48VDC

Output (V) 400VDC

Power 3kW

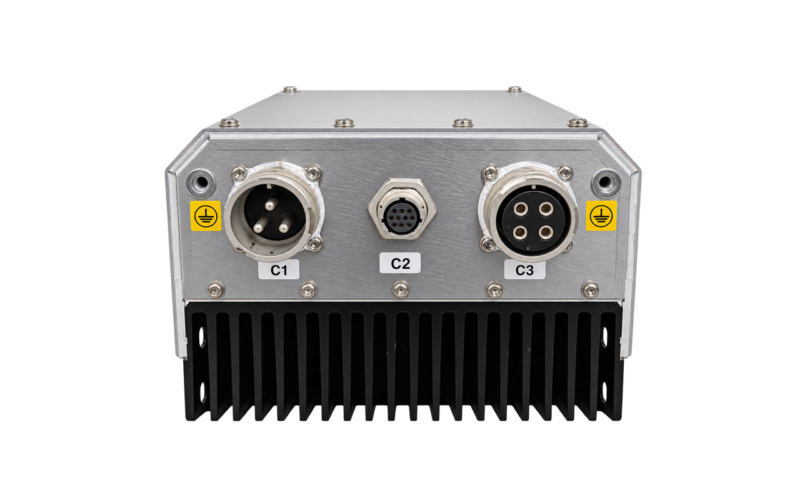

C-190

28VDC to 56VDC Converter

Input (V) 28VDC

Output (V) 56VDC

Power 3kW

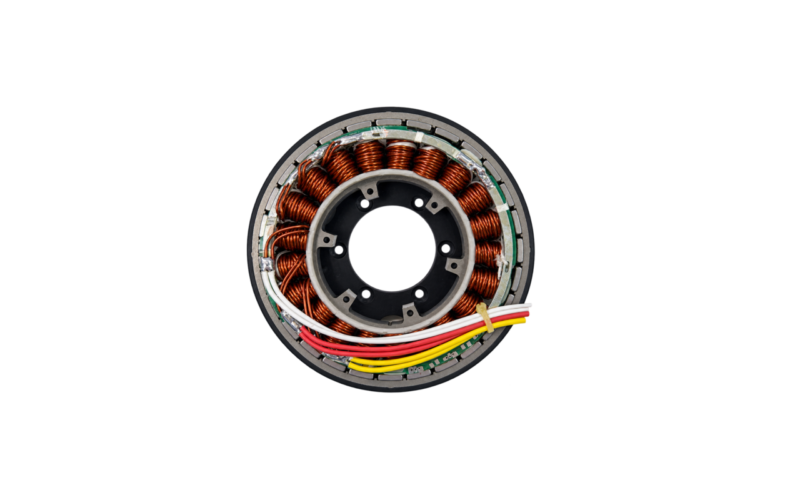

Alternators

In IDM we were among the first companies to develop outrunner Permanent Magnet Alternators. For the last 25 years, we have innovated our material selection, production and testing processes to become the preferred supplier for development and production both for small volumes and at scale of compact alternators, mounted, where possible, directly to the engine's crankshaft.

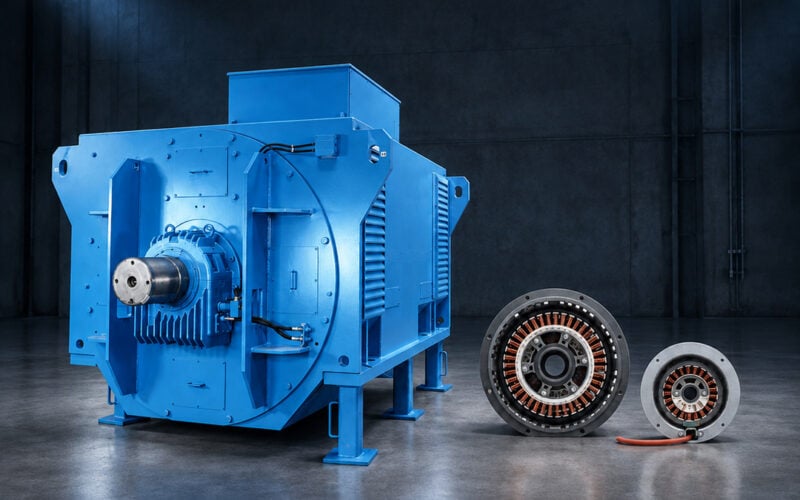

Industrial PMGs

Customizable PMGs for all engine types. Rotors are designed according to the application.

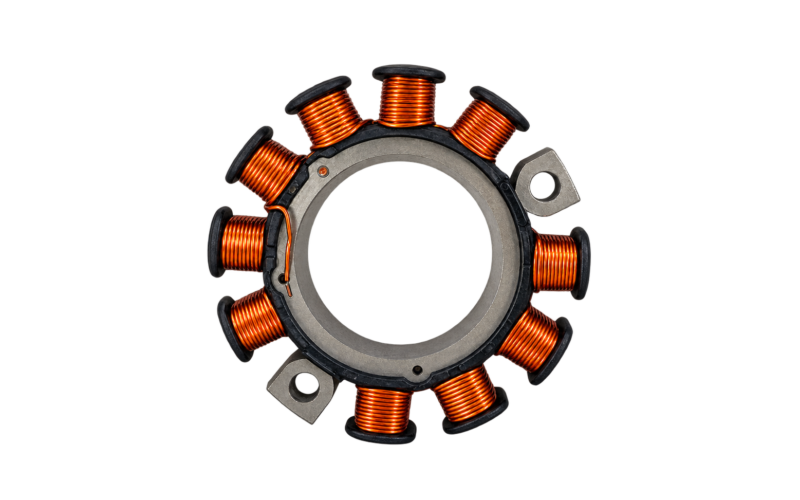

C-mini

100W alternator (50mm)

Outer diameter (mm) 50mm

Power 100W @10000 RPM

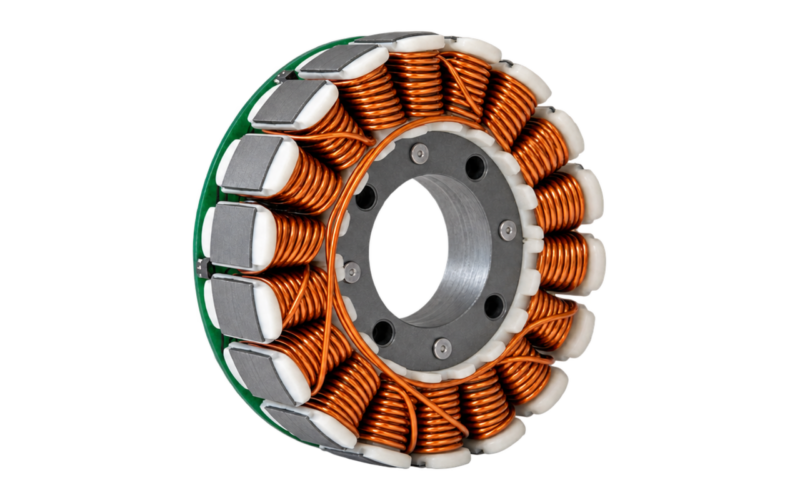

C00801

1.4kW alternator (80mm)

Outer diameter (mm) 80mm

Power 1440W @6000RPM

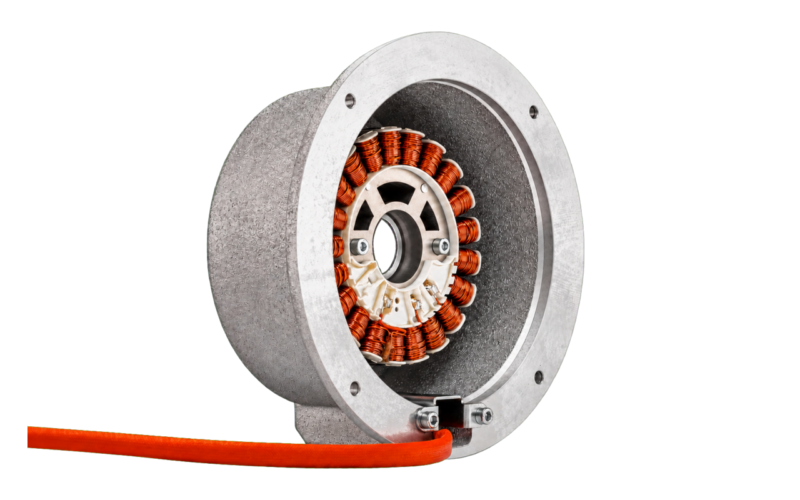

C-116

500W alternator (low RPM)

Outer diameter (mm) 120mm

Power 500W @ 1000RPM

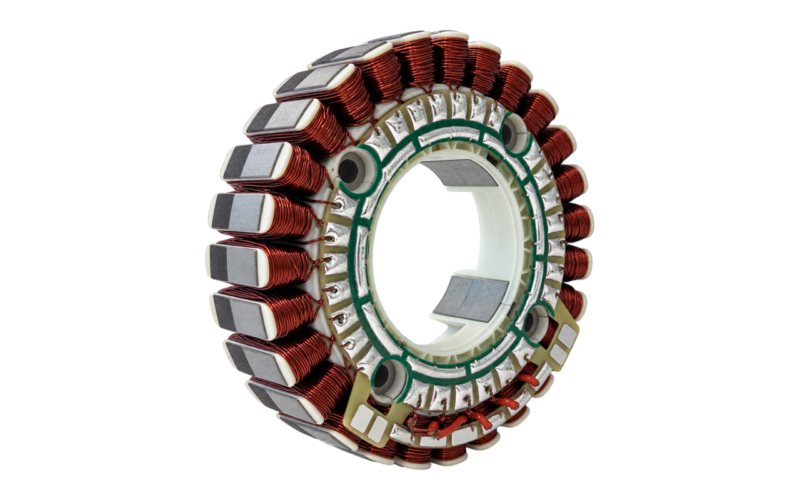

C00156

5kW alternator (156mm)

Outer diameter (mm) 156mm

Power 5kW

Efficiency 89%

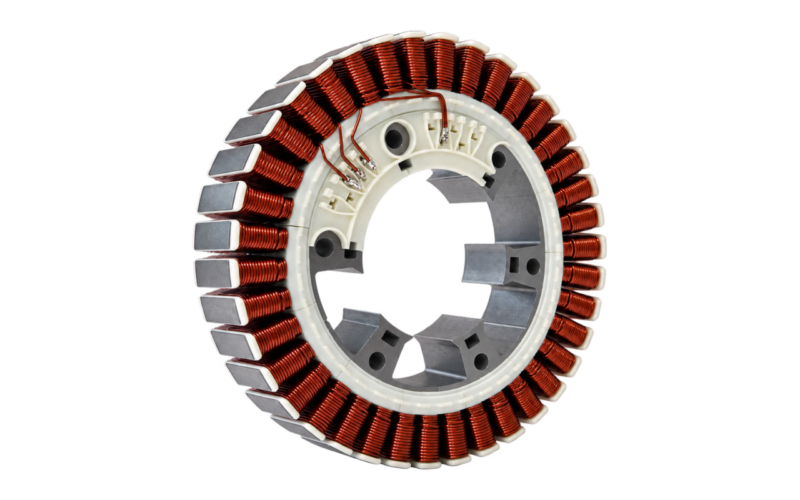

C00220

12kW alternator (220mm)

Outer diameter (mm) 220mm

Power 12kW @3300RPM

Efficiency 93%

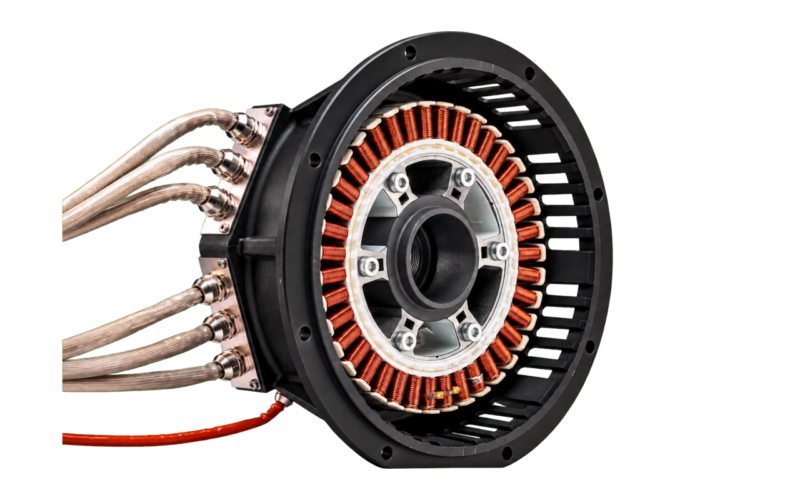

C02481

10kW alternator (248mm)

Outer diameter (mm) 248mm

Power 10kW @2600 RPM

Efficiency 92%

010322

850W Starter Alternator (with Hall sensors)

Power 850W @ 7500RPM

Efficiency 88%

Output (V) 11.2Vrms x 1000RPM

010311

2.2kW Starter Alternator (with Hall sensors)

Power 2.2kW @ 6000RPM

Efficiency 87%

Output (V) 11.4Vrms x 1000RPM

010309

3kW Starter Alternator (with Hall sensors)

Power 3.8kW @6000RPM

Efficiency 88%

Output (V) 11Vrms x 1000RPM

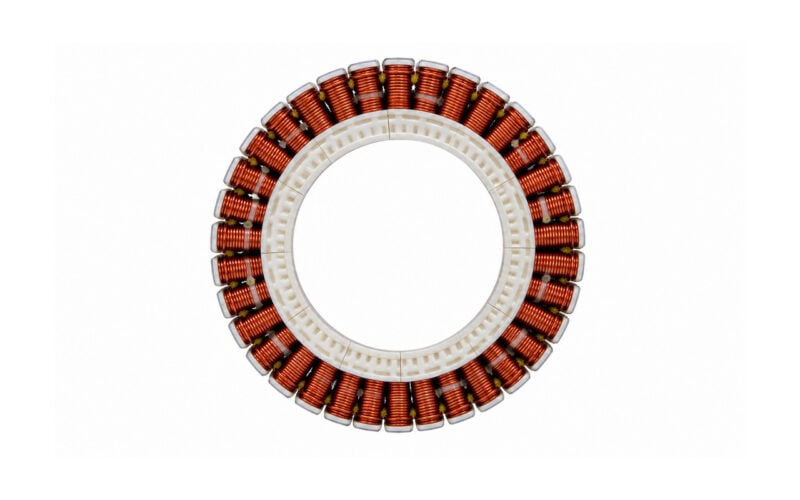

C02861

16kW alternator (286mm)

Outer diameter (mm) 286mm

Power 16.5kW @3600RPM

Efficiency 91%

Motorcycle products

IDM ignitions, CDIs and regulators can be found in several engines for industrial use as well as motorcycles, paragliders, karting, including for Lombardini - Rehlko, Vespa, Lambretta, Polini, Malossi, Garelli, Piaggio, Vittorazi.

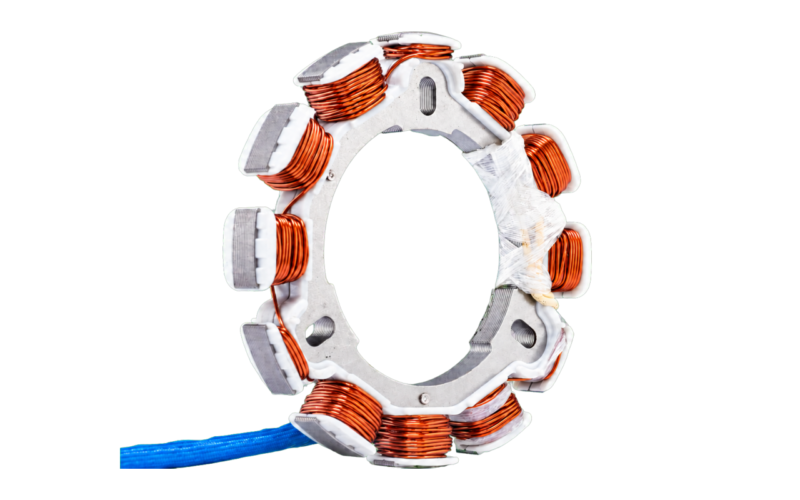

C-YNM

500W alternator (engine battery charging)

Outer diameter (mm) 120mm

Power 500W @ 1000RPM

500W alternator (engine battery charging)

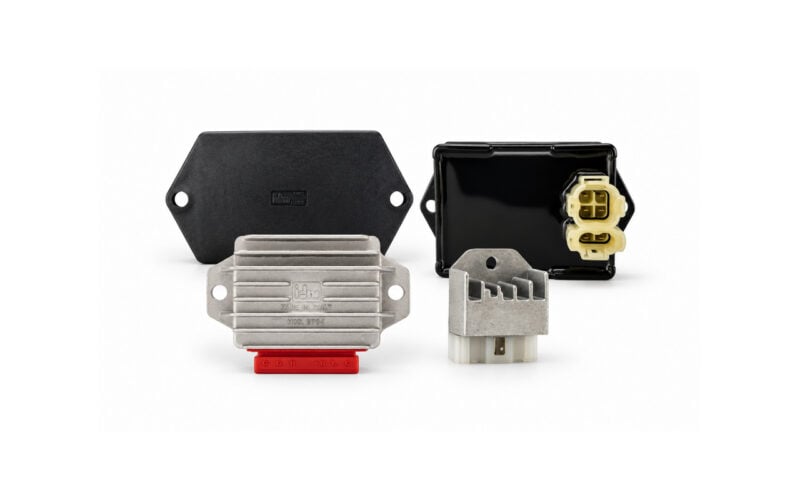

RG-12

Regulators

Output (V) 12-14VDC

CDI-116

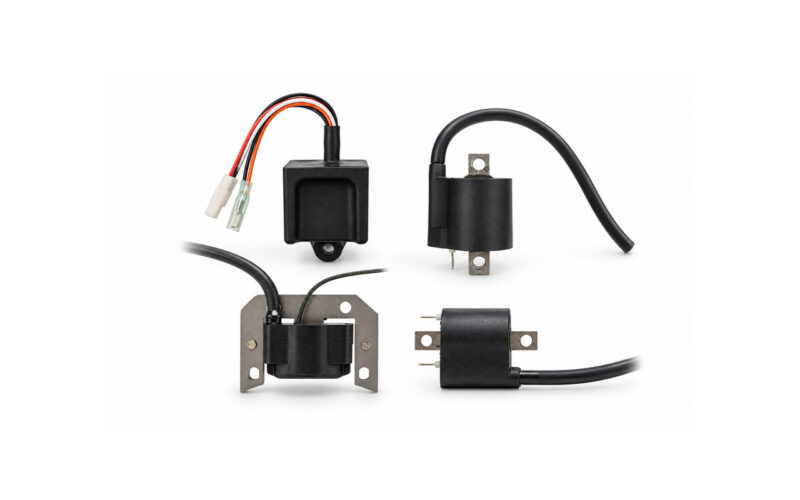

Ignition coils and CDIs

Output (V) Various

Specialty alternators and power electronics.

We design the generators and converters around your engine

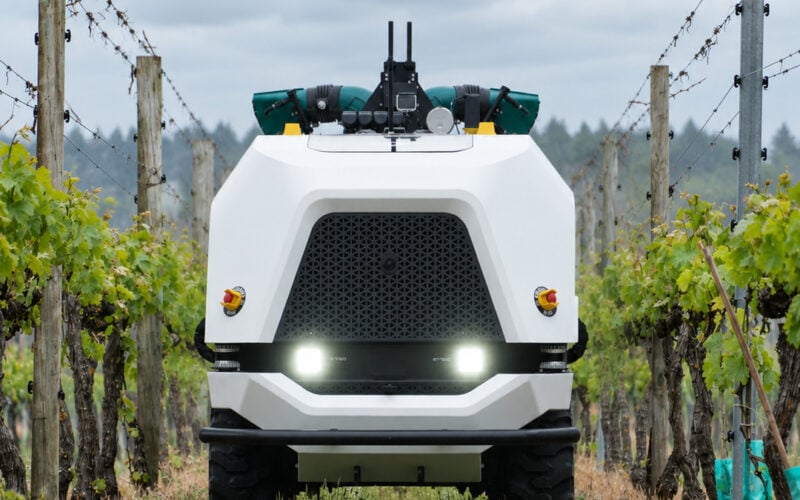

UGVs for agriculture

Mobile generators

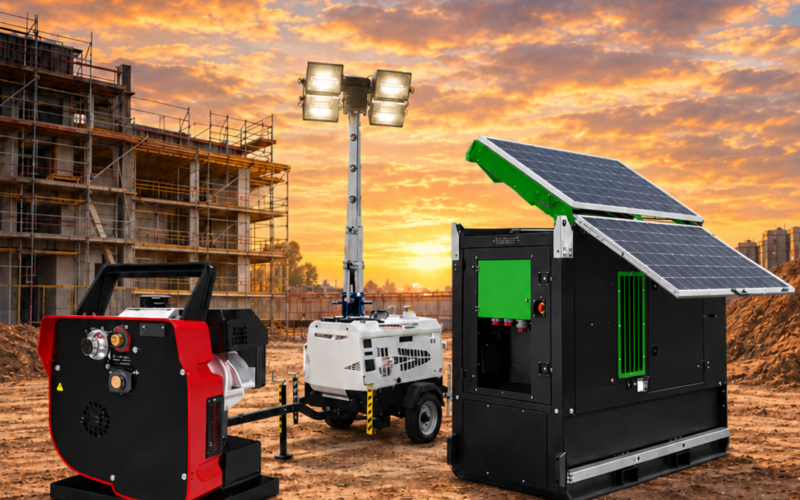

Industrial gensets
